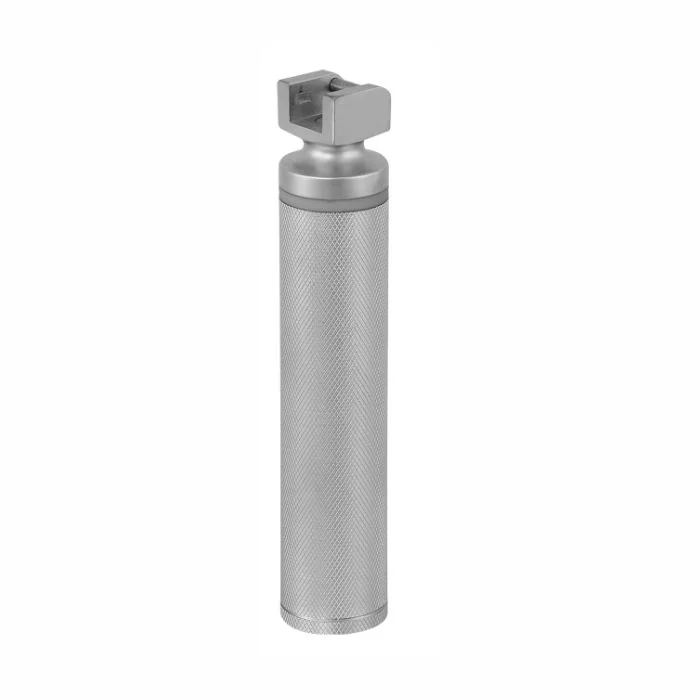

Fiber Optic Handle
Fiber Optic (F.O.) Laryngoscope Blade
MEGA LIGHT
Macintosh Mega Light Laryngosco# blade with 4 x 6 mm and
up to 6500 individual micro-fibers for improved light transmission
and longer life.
303/304 type high grade Stainless Steel with Satin Finish.
Smooth shape avoids sharp edges and cavities for easy cleaning
and sterilizing.
Integrated FitEr Optics for the best possible illumination.
Compatible with all standard Fiber Optic handles.
Fully autoclavable and easier to clean.
Fiber Optic handle with LED light.
According to ISO 7376 standard.
Power Source
All our Fiber Optic handles are powered by
Standard batten,’ handle: 2 • C • size
Pediatric battery handle: 2″ AA’ Size
Stubby battery handle:
2 AA size
Fiber Optic (F.O.) Laryngoscope Blade. (Mega Blade)
Size
1
2
3
4
Blade
Reference no.
SI-190-009
SI-190-010
SI-190-011
SI-190-012
Length
a {mm}
97
114
137
157
b {mm}
18
18
19
22
Fiber Optic (F.O.) Laryngoscope Sets. (Mega Blade)
Referenæ no.
SI-190-013
SI-190-014
SI-190-015
Description
2 Blades + 1 Handle in Plastic Box.
3 Blades + 1 Handle in Plastic Box.
4 Blades + 1 Handle in Plastic Box.
